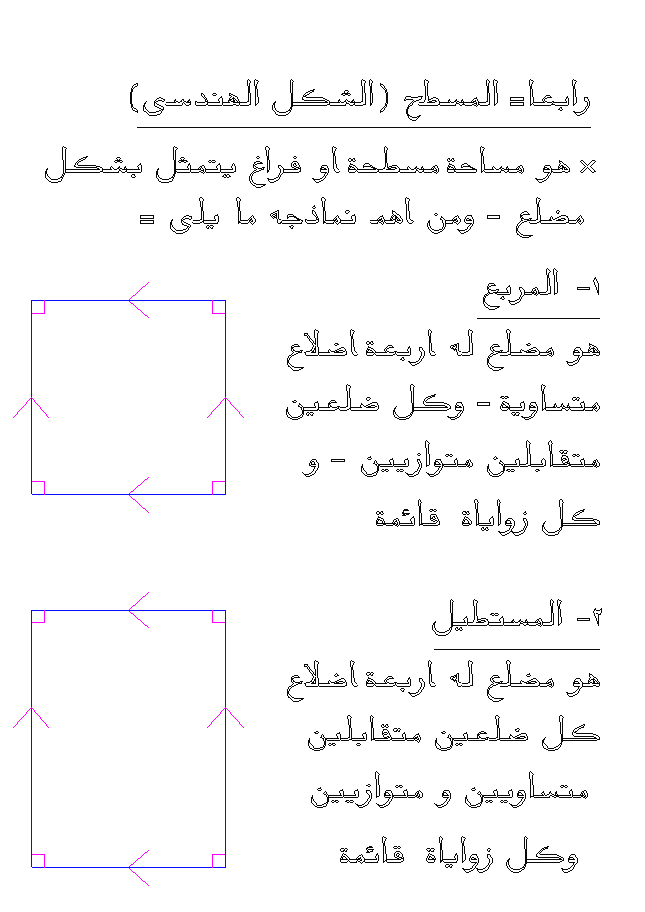

الجزء الأول "أساسيات الرسم المعمارى"

الجزء الأول الجزء الثاني الجزء الثالث الجزء الرابع

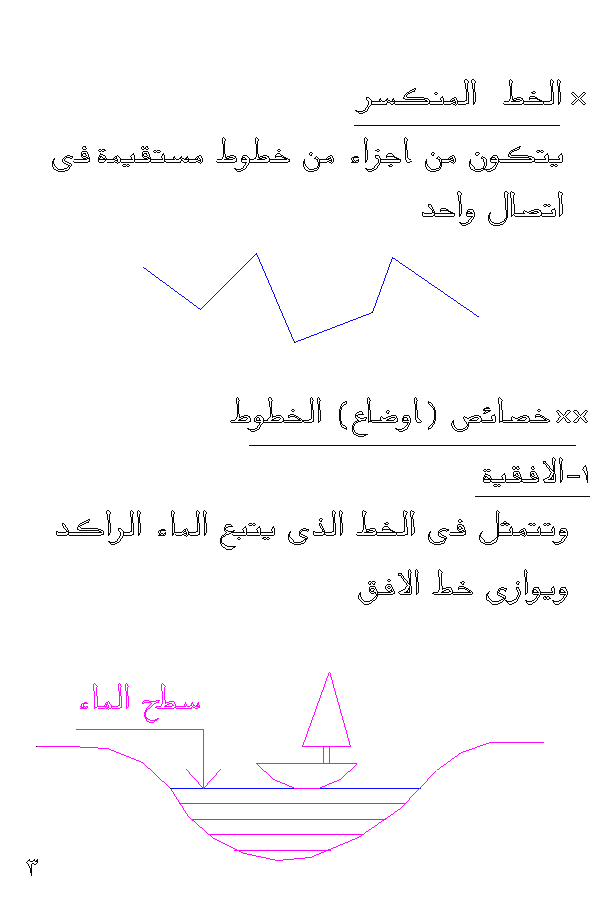

* أداة تحديد أفقية الأسطح عند الفراعنة وفى العصر الحديث:

  كان الفراعنة يستخدمون أداة بسيطة من الخشب عبارة عن ساقين خشبيتين متساويتين، يربط بينهما في مستوى معين قطعة خشبية أفقية، ويتدلى من نقطة التقاء الساقين الخشبيتين خيط به ثقل معدني (انظر الشكل أسفل)، وتسمى هذه الأداة بمقياس المستويات.

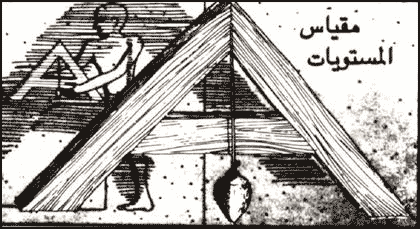

شكل توضيحي لمقياس تحديد أفقية الأسطح.

يتم وضع الساقين المتساويتين على السطح المراد معرفة مدى أفقيته، فإذا تدلى الخيط رأسيا تماما فهذا يدل على أفقية هذا السطح، أما إذا مال جهة اليمين أو اليسار فيدل على عدم أفقية السطح (انظر الشكل التوضيحي أسفل الصفحة).

حالة وجود ميل في سطح القياس                               حالة أفقية سطح القياس

رسم توضيحي لكيفية استخدام مقياس الاستواء.

أما ابسط أداة تستخدم في عصرنا الحديث لتحديد أفقية الأسطح فتسمى بميزان الماء، وهو عبارة عن أداة أشبه بالمسطرة ولكن لها عمق وتحتوى في منتصفها على عدسة زجاجية تحتها فراغ به ماء وبداخله فقاعة هواء، فإذا تم وضع الميزان على سطح أفقي تماما فان فقاعة الهواء تستقر في منتصف الماء تماما، أما إذا كان السطح مائلا فان فقاعة الهواء تذهب عكس جهة ميل السطح.

* أداة تحديد رأسية الأسطح عند الفراعنة:

  كان الفراعنة يستخدمون أداة تسمى مقياس الرصاص لتحديد مندى رأسية المستويات،       وهى عبارة عن قطعة خشبية رأسية يبرز منها قطعتان خشبيتان متساويتان في الطول، ويتدلى من القطعة البارزة العلوية خيط يحمل ثقل من مادة الرصاص.

  وفى حالة وضع هذه الأداة على سطح (حائط مثلا) لمعرفة مدى رأسيته، فإذا كان الخيط ملامسا تماما لكل من القطعة البارزة العلوية والقطعة البارزة السفلية فان هذا يعنى أن هذا المستوى (الحائط) رأسي تماما.

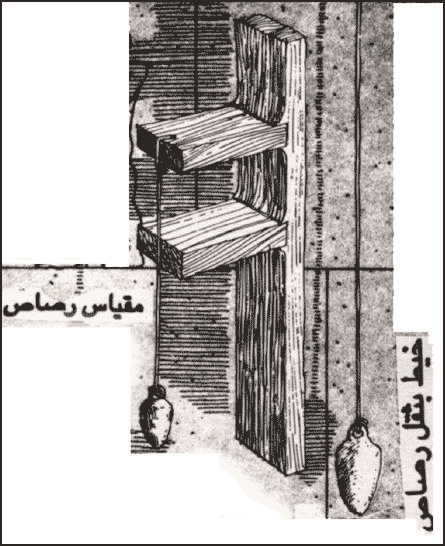

شكل توضيحي لمقياس الرصاص المستخدم في معرفة مدى رأسية الأسطح في عهد الفراعنة.
